VALIDA
Tissue roll wrapper for bath and kitchen towels
BW Converting's VALIDA, made by its STAX brand, is the premier high-efficiency wrapper for hygienic and kitchen rolls.
Product Details
The VALIDA roll wrapper, made by BW Converting brand STAX, is for packs from a single roll up to 48 rolls on a single or double layer, with 4 (optionally 5) lanes infeed. This wrapper is easy to use, it is fully servo driven, entirely controlled by 24 servomotors and by the most advanced motion controllers which allow highest flexibility and extremely fast format changeover. With a production speed that exceeds 200 packs/minute and extremely easy maintenance, VALIDA places itself as the most advanced and at the same time the most efficient wrapper on the market.
Max speed: 220 packs/min
Options
- Handle applicator
- Data printer
- Roll diameter up to 250 mm
- Lateral perforation for easy opening
- Automatic changeover

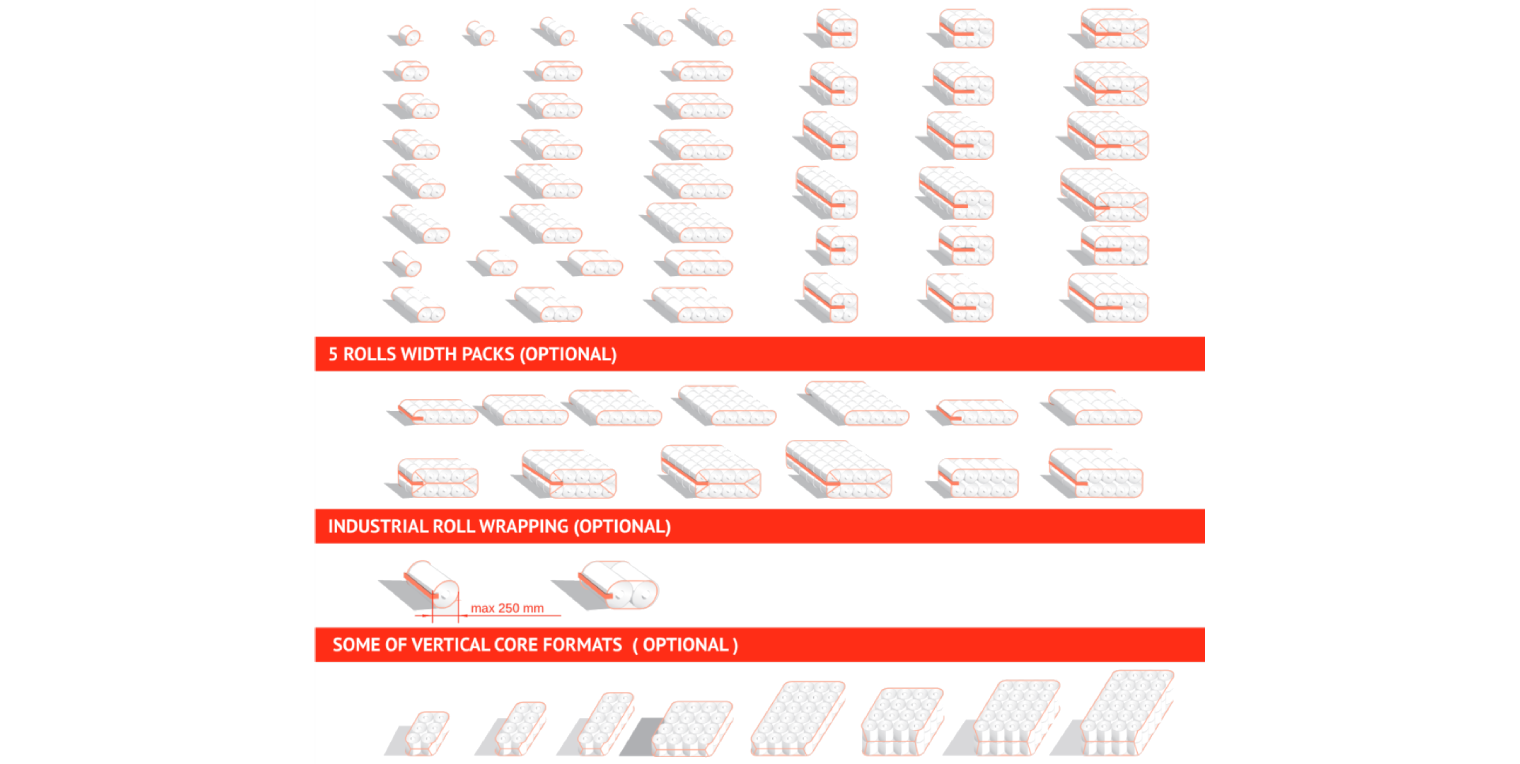

Packaging Variations
Layout
Technical Specifications
| Infeed | 4 lanes (5 lanes) |
| Maximum Speed | Up to 220 ppm |
| Average Format Changeover Time | 15 minutes |
| Roll Diameter | 95 mm - 160 mm (250 mm) |
| Roll Length | 90 mm - 300 mm |
| Pack Length | 90 mm - 600 mm |
| Pack Width | 90 mm - 600 mm |
| Pack Height | 90 mm - 300 mm |
| Wrapping Material | PE, LDPE (paper) |
